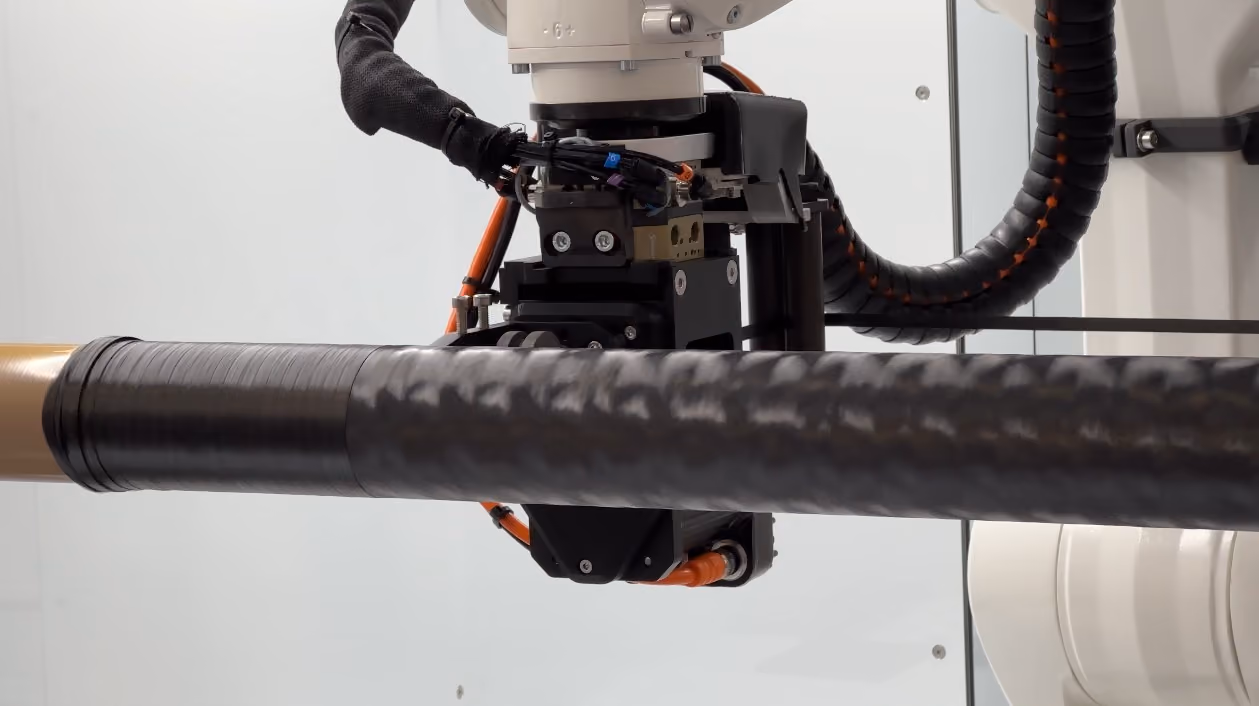

Precision down to one tow. The compact single-tow head for filament winding, with set tension and eyelet rotation synchronized to the robot.
Fibre Configuration
Tow count: 1
Width: from 1 mm to 1/4''
Max tension: 40 N per fibre
Tension control: set value applied throughout winding
Width: from 1 mm to 1/4''
Max tension: 40 N per fibre
Tension control: set value applied throughout winding

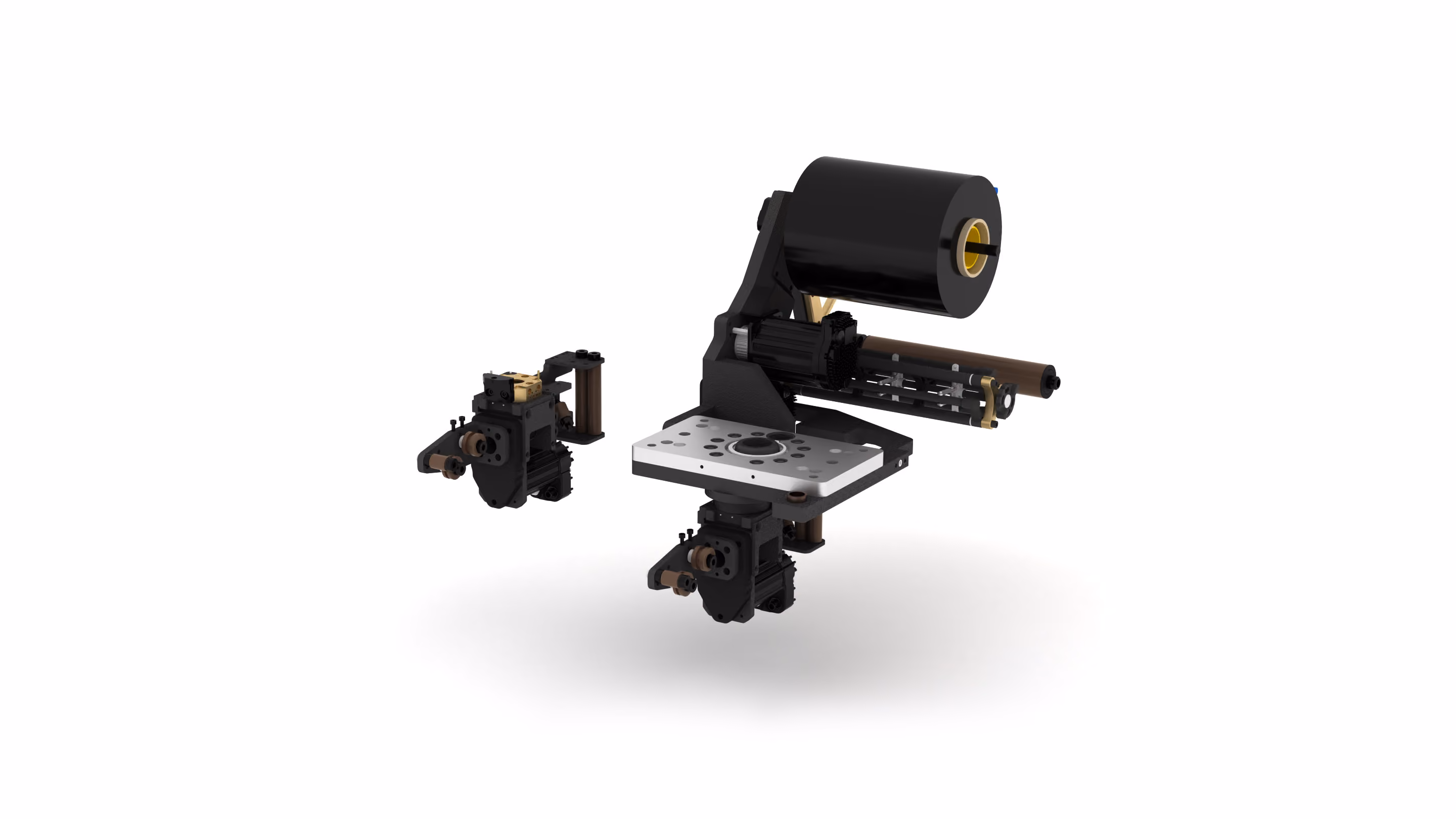

Head Specifications
Creel configuration: fixed side creel or onboard spool, depending on the machine selected
Head weight: 3-9 kg, depending on creel configuration (excludes loaded material)
Open design, for easy fibre guiding
Head weight: 3-9 kg, depending on creel configuration (excludes loaded material)
Open design, for easy fibre guiding
Material Compatibility
Thermoset: slit tape or towpreg
Compatible with material using separator film
Compatible with material using separator film
Motion & Synchronization

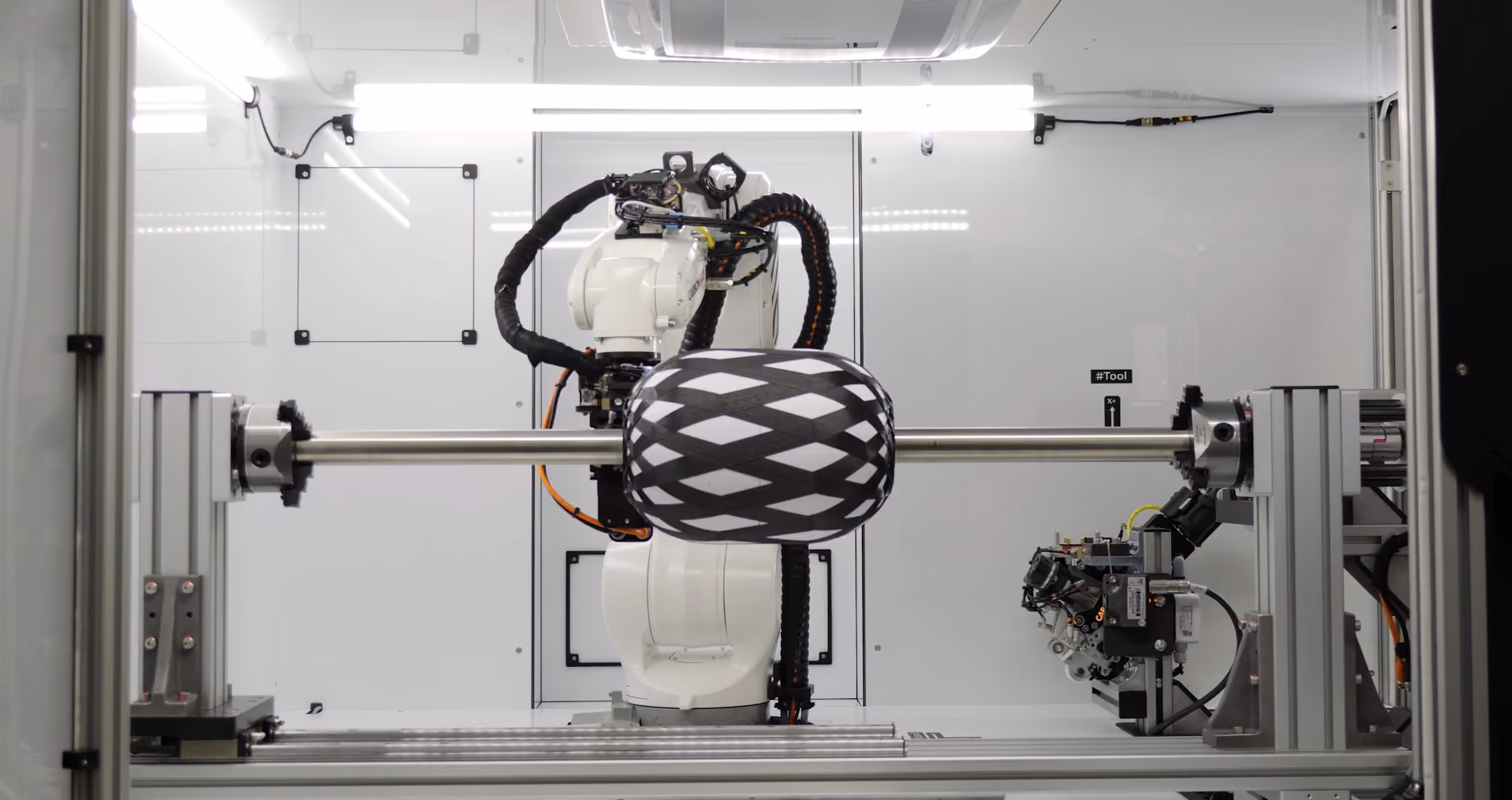

Winding pattern capability: geodesic vs. non-geodesic

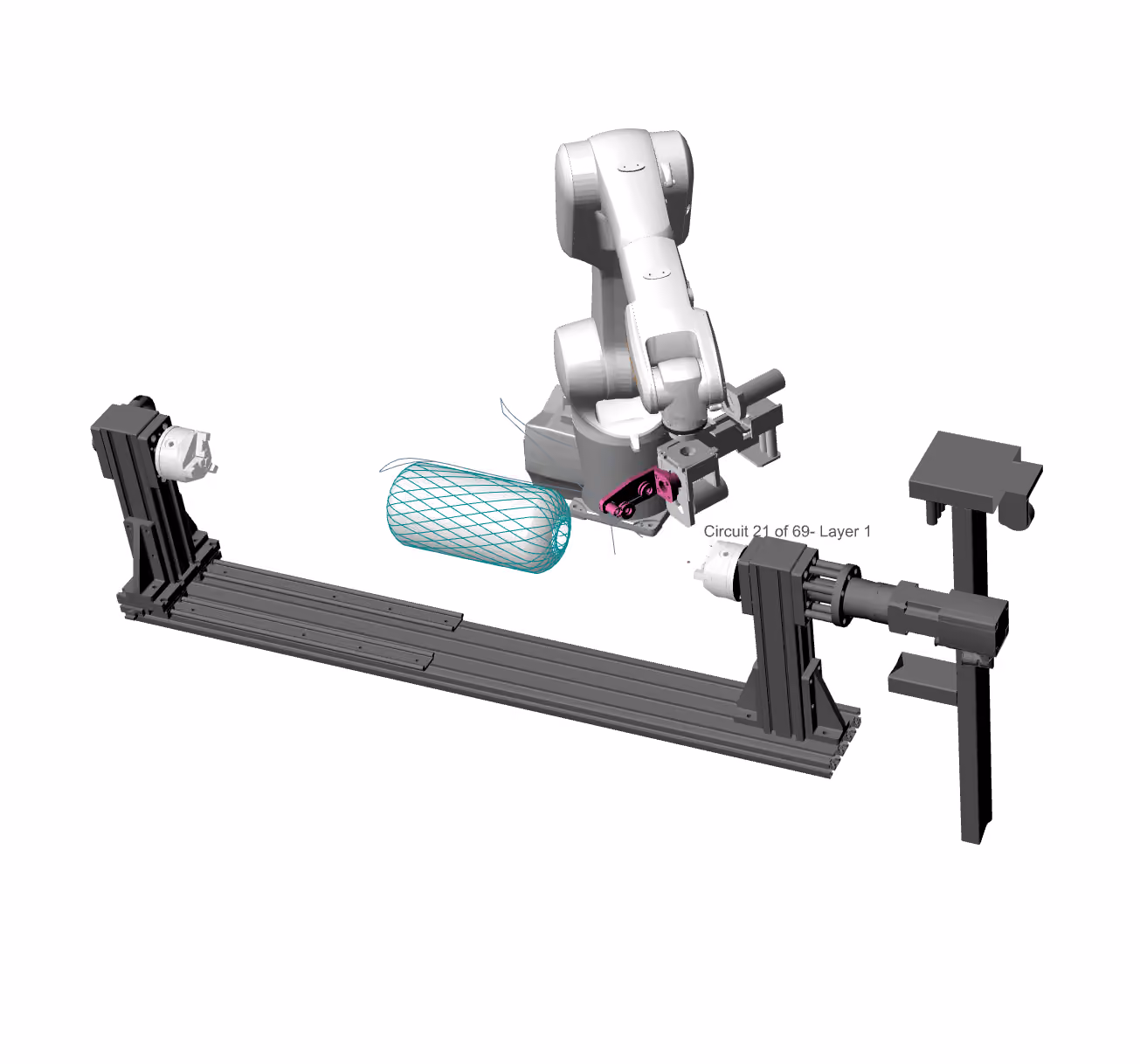

Axis synchronization: robot, mandrel, and eyelet move as one synchronized system
Winding speed: up to 1 m/s
Axis synchronization: robot, mandrel, and eyelet move as one synchronized system
Winding speed: up to 1 m/s
