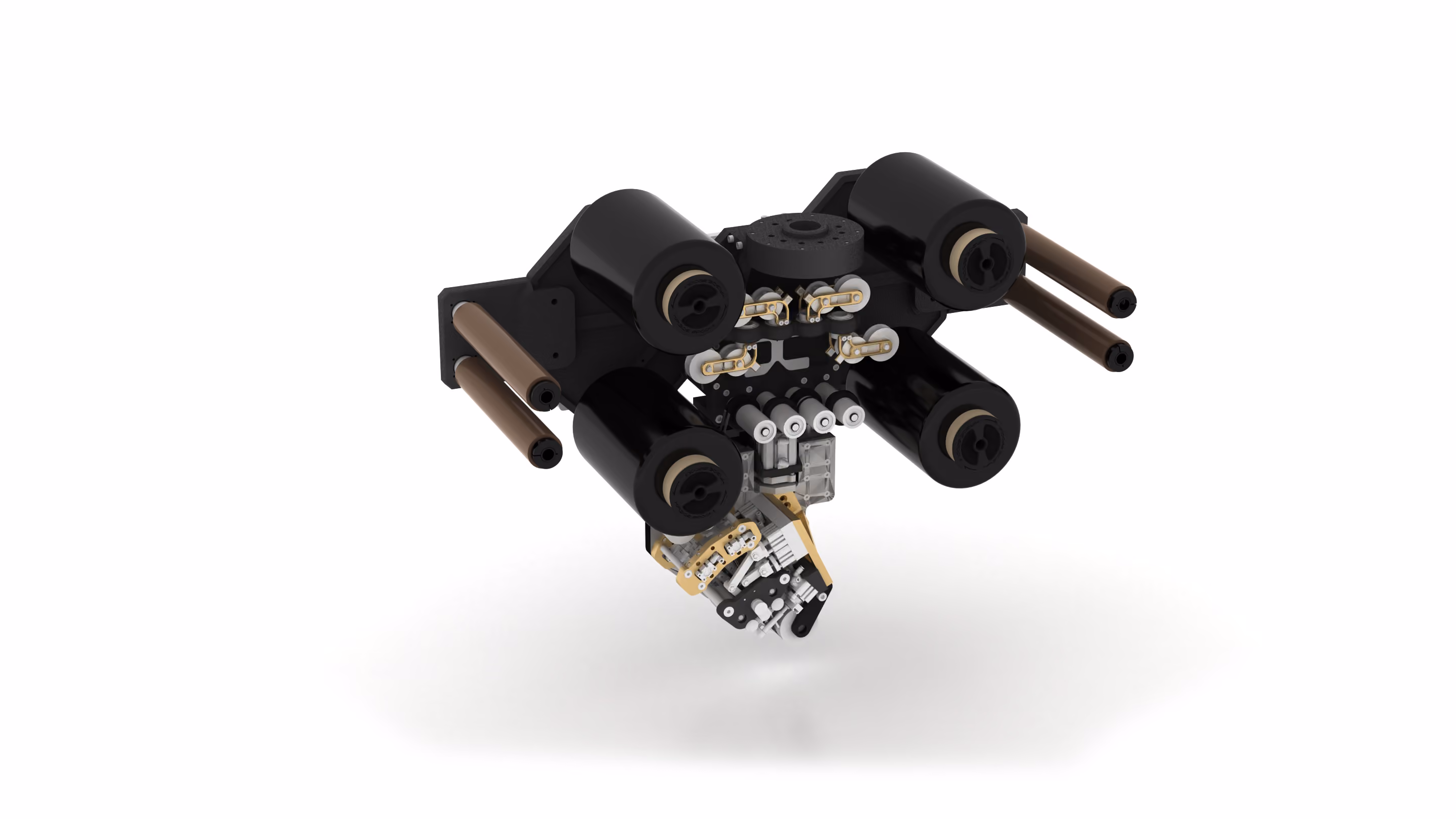

More surface, less time. The high-deposition AFP head, with up to four tows, individual tow cut for precise ply shaping, and a light design that’s easy to handle and maintain.
Fibre Configuration
Tow count: up to 4
Width: from 1/4" to 2"
Minimum fibre length: 70 mm
Width: from 1/4" to 2"
Minimum fibre length: 70 mm
Head Specifications
Cut/restart precision: +-2.5mm
Lateral tolerance between tapes: 0/+1.5mm
Layup speed: up to 1 m/s
Tension control: set value applied to spools during layup
Creel configuration: onboard spool
Head weight: 55 kg (excludes loaded material)
Lateral tolerance between tapes: 0/+1.5mm
Layup speed: up to 1 m/s
Tension control: set value applied to spools during layup
Creel configuration: onboard spool
Head weight: 55 kg (excludes loaded material)
Material Compatibility
Thermoset: slit tape or AFP towpreg. Standard head, with IR lamp heating.
Thermoplastic and dry stabilized tapes: requires an alternate heat source (optional).
Thermoplastic and dry stabilized tapes: requires an alternate heat source (optional).
Individual Tow Cut
Individual tow cut lets each tow start and stop independently, for precise ply shaping. A light design keeps the head easy to handle and maintain.
